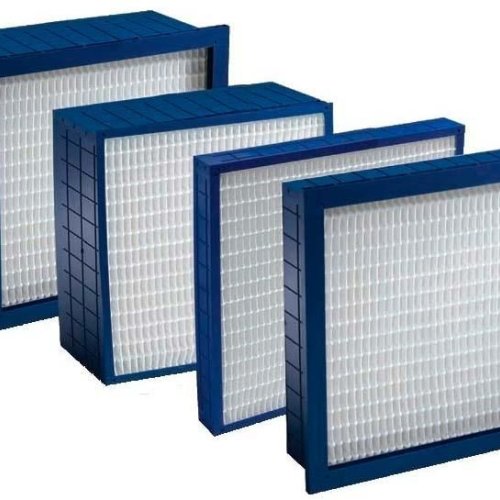

Mini Pleat Hepa Filter

Mini Pleat Hepa Filter

As per the variegated requirements of our clients, we are offering a broad collection of Mini Plate HEPA Filter. The offered filters has the ability to capture 99. 97% of particles 0. 3 microns in diameter. These products are manufactured using excellent quality raw material and latest technology by our skilled professionals. In order to ensure quality, these products are stringently tested on various parameters by our experts. Apart from this, remarkable quality and easy installation increase the demand of our offered range in the market. Features: Low pressure drop due to pleated configuration Easy to install Good mechanical strength Technical specifications: flange type & box type customized sizes are available on request filtration rating: 0. 3 micron & more frame material: ss 304 gi (galvanized steel) aluminum. filtration efficiency: 90 – 99. 9 % filter media: glass fiber media spun bonded polyester media. Common specifications. Dimensions (mm) Filter area (m²) Wind speed at 0.45ms the resistance(Pa) Rated air flow (m³h) width×height×depth 305×305×69 2.7 200-220 250 305×610×69 5.5 500 610×610×69 11.3 1000 915×610×69 17.0 1500 1219×610×69 22.7 2000 305×305×90 3.7 300 305×610×90 7.5 550 610×610×90 15.4 1100 915×610×90 23.2 1600 1219×610×90 31.1 2500 305×305×135 3.6 300 305×610×135 7.4 550 610×610×135 14.7 1100 915×610×135 22.0 1600 1219×610×135 29.4 2500 Other Information Pay Mode Terms: TT (Bank Transfer)
